Ingot Mould

Castings are tailor made products therefore needs careful production planning. In the process of manufacturing ingot moulds we use DRY SAND MOULDING PROCESS. We have our own in house PATTERN shop catering to our various clients specifications.

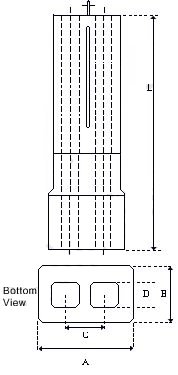

C.I Duplex Ingot Moulds Size C.I Single Ingot Mould (Square)
  3.5" x 4.5" x 54" to 60"
 (as per requirements)		 6" x 7" x 50" to 60"
(as per requirements)
4" x 4.5" x 54" to 60"
(as per requirements)		 7" x 8" x 50" to 60"
(as per requirements)
4" x 5" x 54" to 60"
(as per requirements)		 8.5" x 10" x 50" to 60"
(as per requirements)
4¼" x 5" x 54" to 60"
(as per requirements)
4.5" x 5" x 54" to 60"
(as per requirements)
5" x 6" x 50" to 60"
(as per requirements)
5.5" x 6.5" x 50" to 60"
(as per requirements)
Size and Length can be altered as per customer requirements Size and Length can be altered as per customer requirements


C.I Slab Moulds Size

7.5 x 3.5"/8 x 4.5"/48" to 54" (Duplex)

8 x 4.5"/9 x 5.5"/48"  to 54" (Duplex)

Size and Length can be altered as per customer requirements



Click here to read ISI Norms for preparation of Ingot Moulds
